Diaphragm Accumulators / Pressure Pulse Stabilizers

Is your pipework noisy? Has heavy pulsation in your pipework caused instrumention problems?
Contact us and we can solve the problem together.

Intercept instrument destabilizing high frequency, prevent resonance, stop acoustic waves, address
acceleration head forms of pulsation. All with flush in place and constant temperature features.

FlexOrber HP | FlexOrber LP | PipeHugger HP | PipeHugger LP

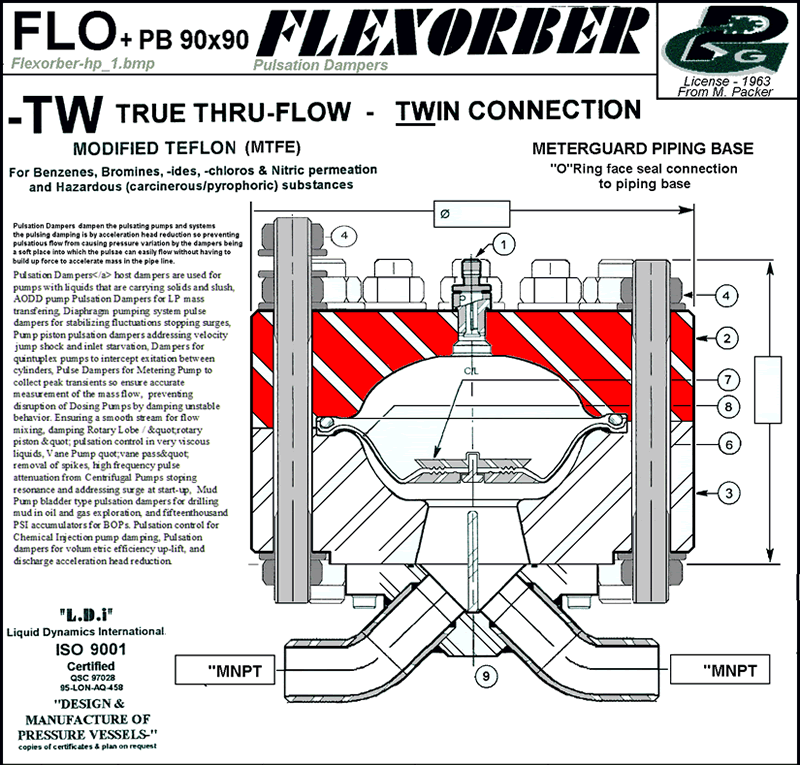

Pulsation Damper / Thru Flow Discharge Pulsation Preventor

For benzenes, bromines, -ides, -chloros + nitric permeation, and hazardous substances.

See also: Pulsation Damper Line Drawing
(The link above will open a new tab or window.)

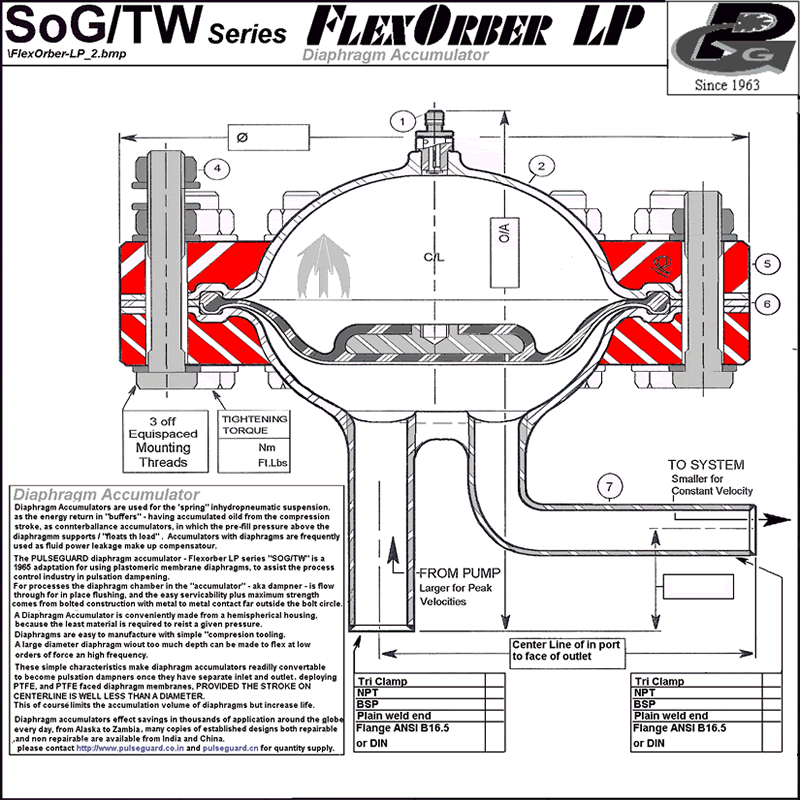

Thru Flow Diaphragm Accumulator / Pulsation Preventor

The Flexorber LP series is an adaptation with plastomeric membrane diaphragms for process control industry pulsation dampening.

See Also: Diaphragm Accummulator Line Drawing
(The link above will open a new tab or window.)

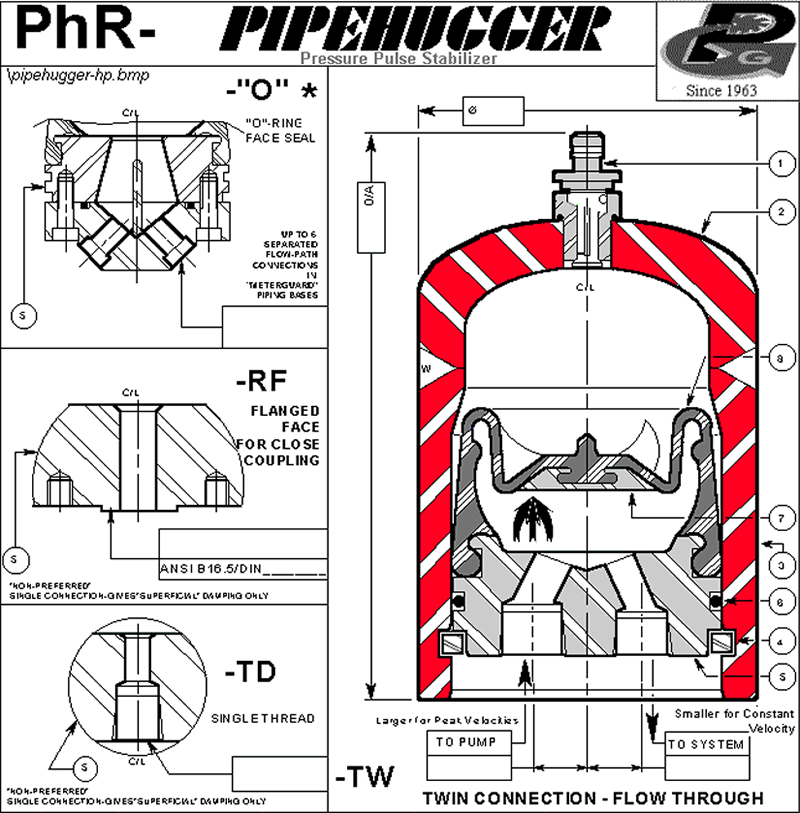

Thru Flow Pressure Pulse Stabilizer / Pulsation Preventor

These stabilizers, for pressures up to 30000 psi, remove fluctuations and make your systems controllable whilst protecting instrument accuracy.

See also: Pressure Pulse Stabilizer Line Drawing
(The link above will open a new tab or window.)

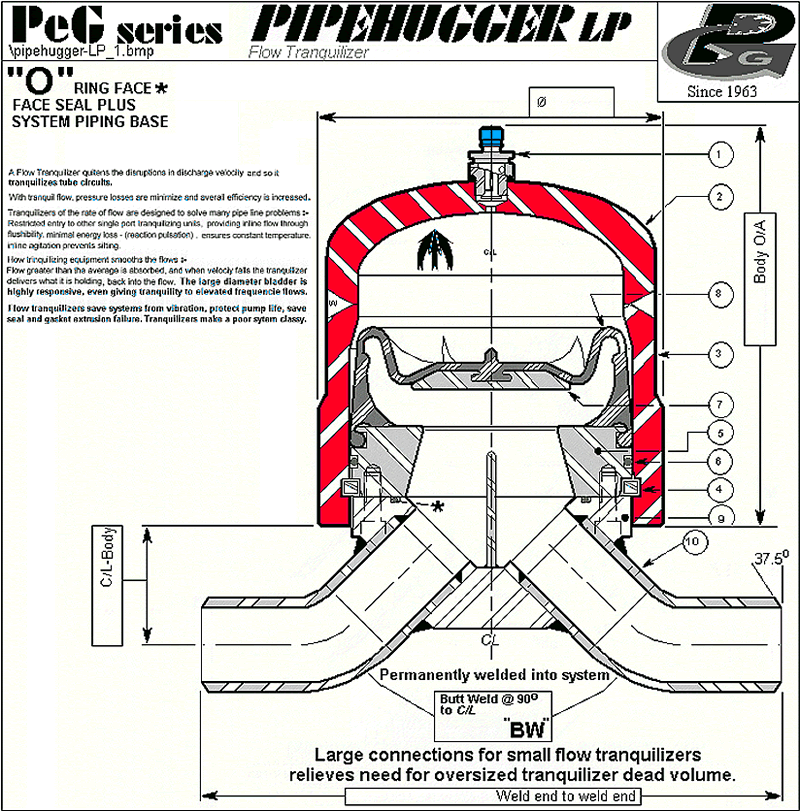

Flow Tranquilizer / Pulsation Preventor with Thru Flow

A flow tranquilizer quietens the disruptions in discharge velocity; pressure losses are minimized and overall efficiency is increased.

See also: Flow Tranquilizer Line Drawing
(The link above will open a new tab or window.)

Vesipaineiskuvakauttajat Paineiskutasaajat Nestevoima akkumulaattorit Pumput Suomi

Flow Smooth

Yhteistyössä – FlowPartners Oy – annostusjärjestelmät

[ Ottakaa yhteyttä meihin ]

Pumput Suomi / sykkeenvaimentimet kuvaukset ovat saatavana koulutuskäyttöä varten seuraavasta linkistä: "Harri Österman"
